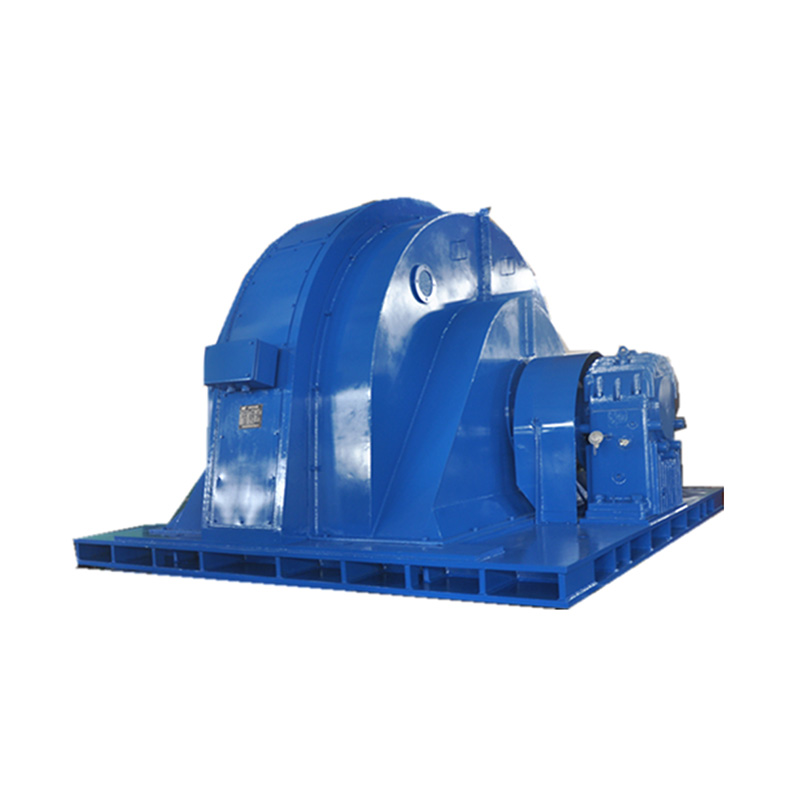

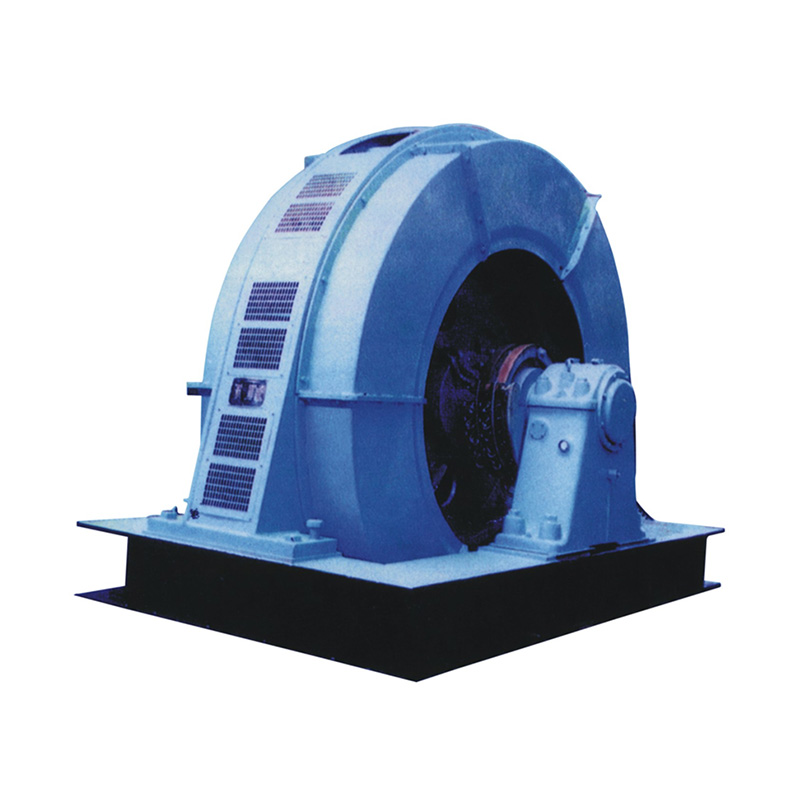

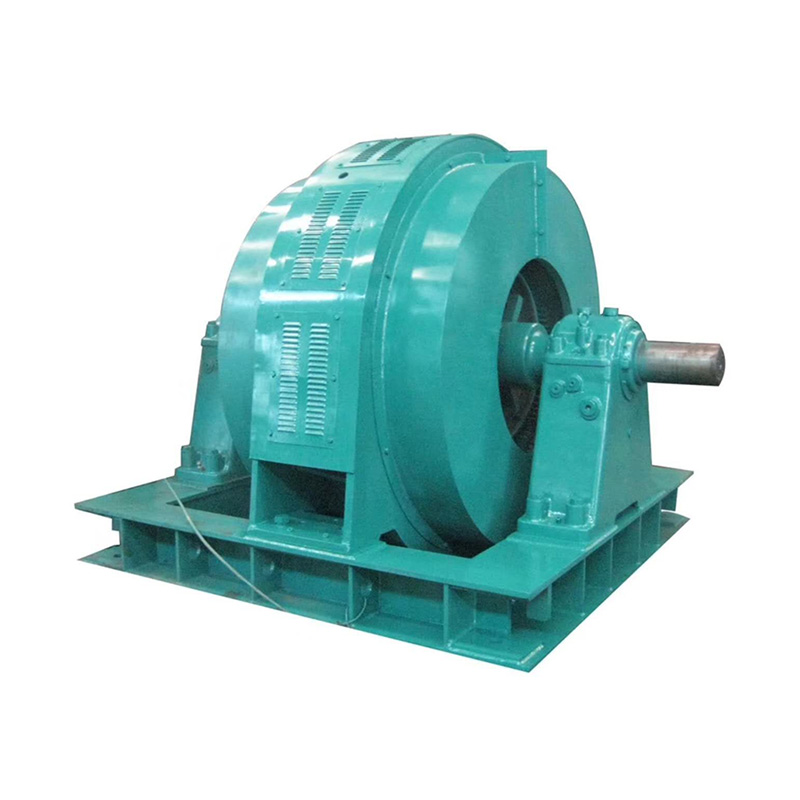

T series three-Phase Synchronous Induction Motor
Home / Products / High Voltage Motor / High Voltage Synchronous Motor / T series three-Phase Synchronous Induction Motor

T series three-Phase Synchronous Induction Motor

Different voltages and frequencies can be provided according to user requirements, and the rotation direction of the motor is optional as customers request as well. The motor shaft extension can not withstand the external radial or axial force. The excitation device of the motor is generally silicon-controlled. The motor allows the full voltage to start directly. If the user's power grid is not allowed to start directly, reduced voltage starting can also be used at this time, the dynamic current of the motor is proportional to the end voltage, while the starting torque is proportional to the square of the end voltage.

Contact Us
Parameter
Type T series three-phase synchronous induction motor
Feature Static Excitation or other
Poles 10-24poles
Voltage 380v-13.8kv
Output Power 160KW-4000KW
Rated Frequency 50 HZ
Protection Class IP00/IP23
Insulation Class F/B,H/B
Duty S1
Altitude Less Than 1000m
Ambient Temperature -15℃~+40
Installation IM311/IM5710
Application Dry drive blower, water pump steel rolling, reciprocating compressor, refrigeration and
fertilizer equipment, driving mine mill
