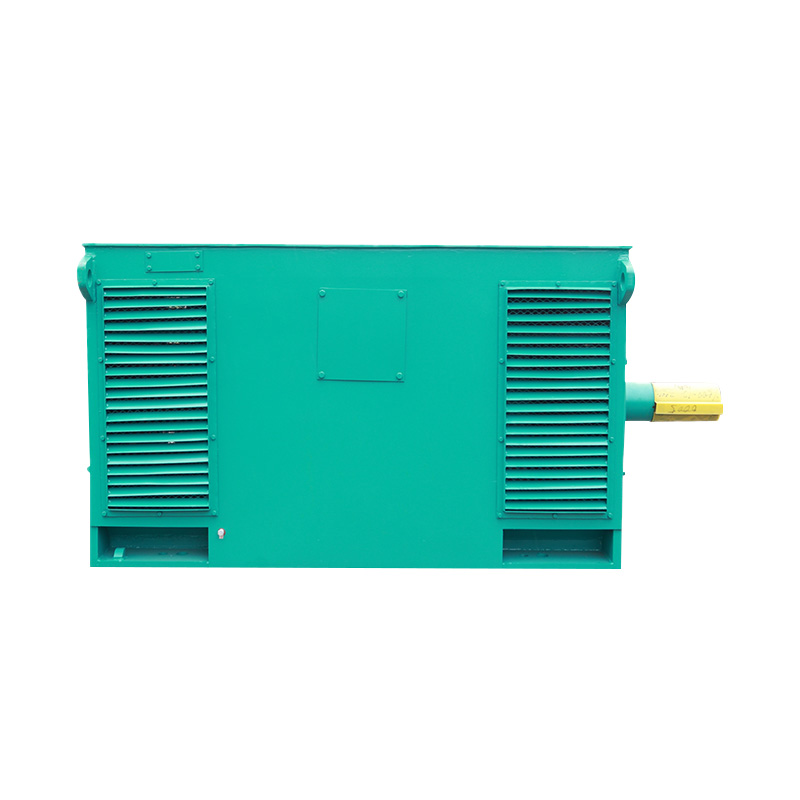

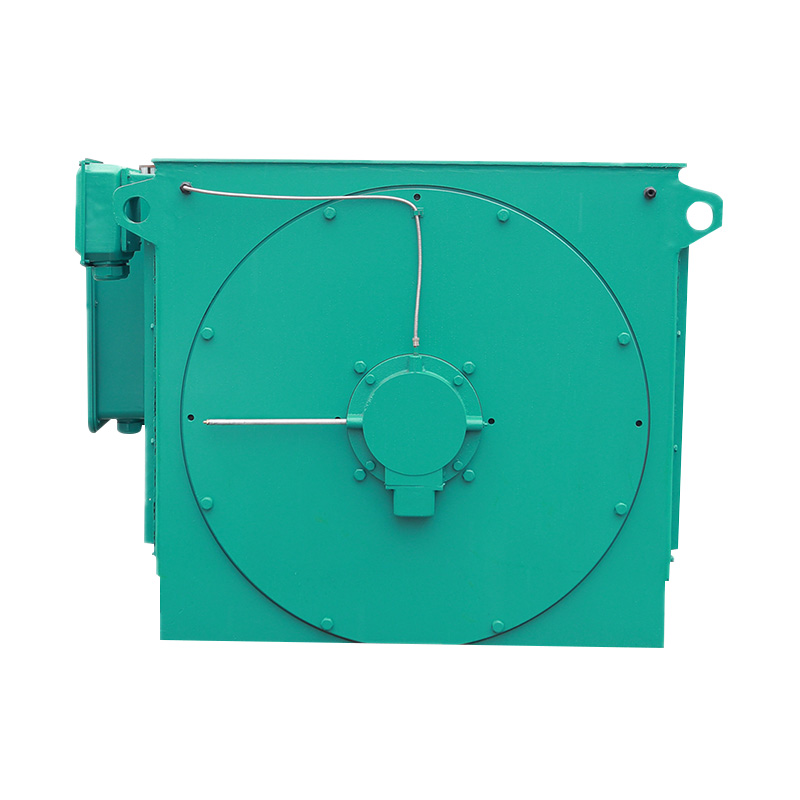

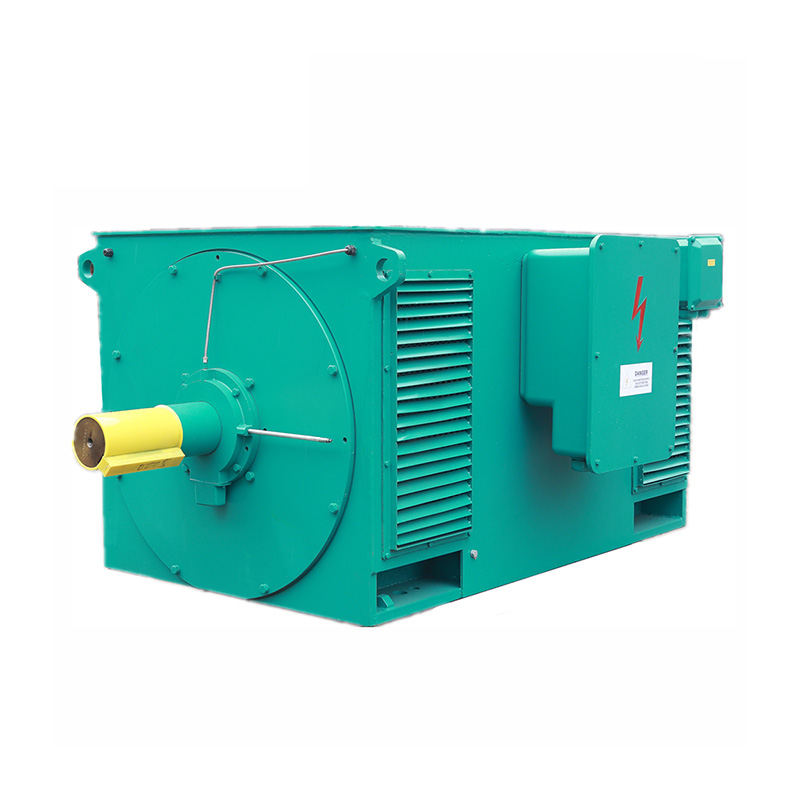

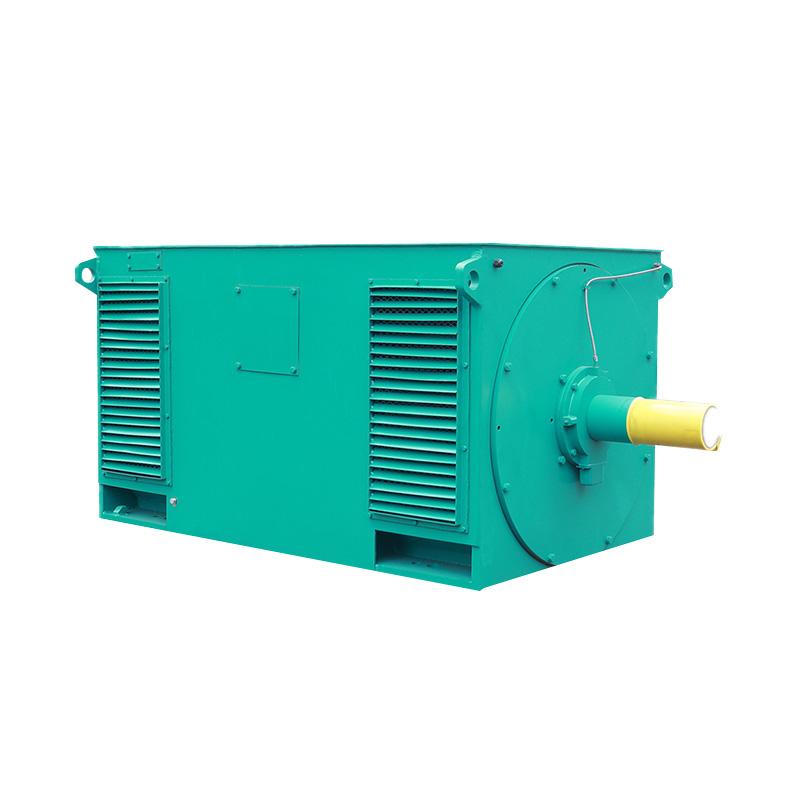

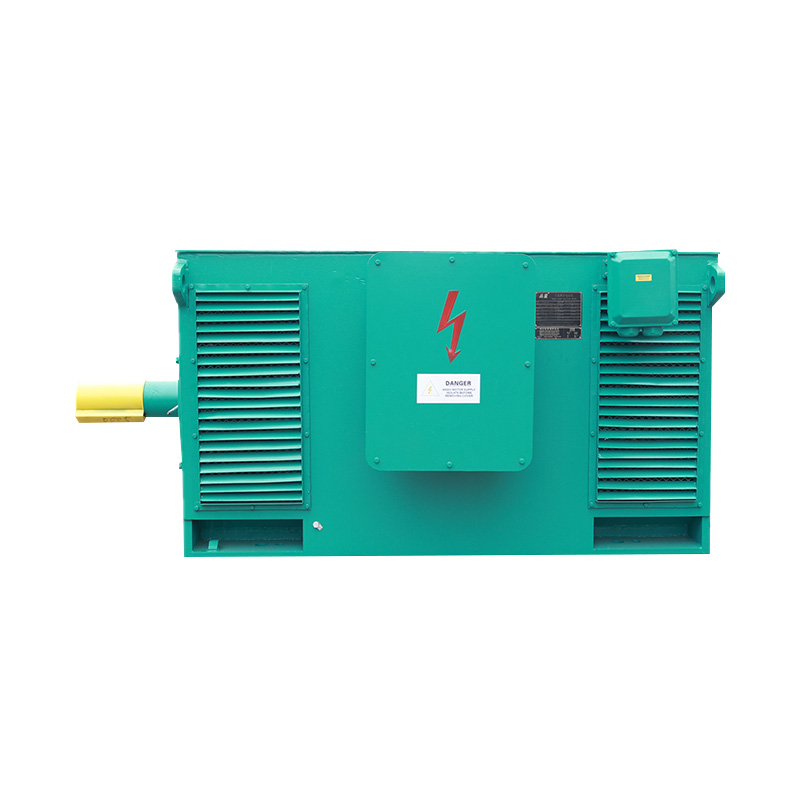

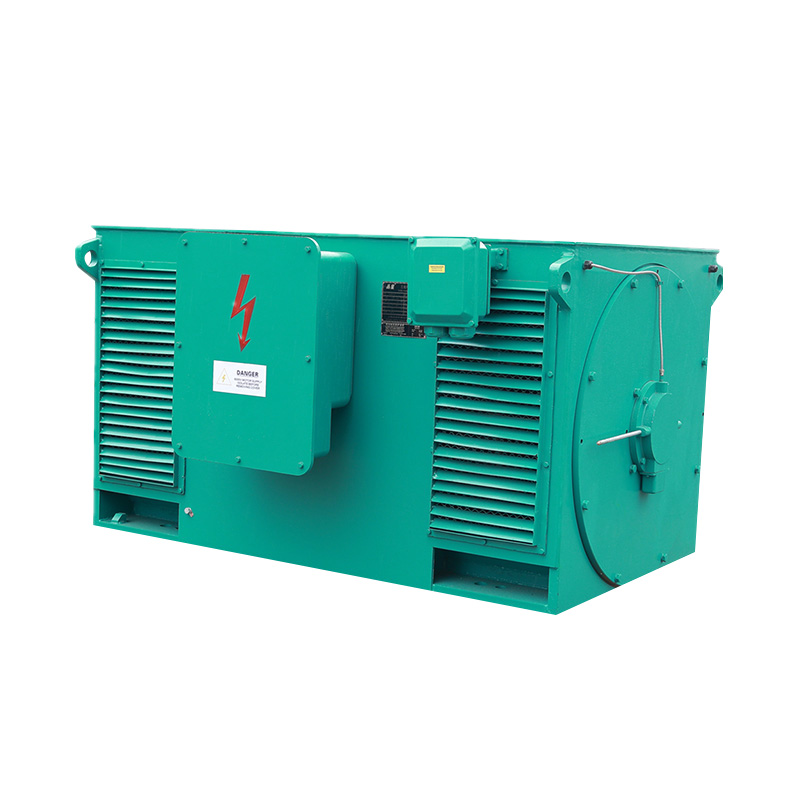

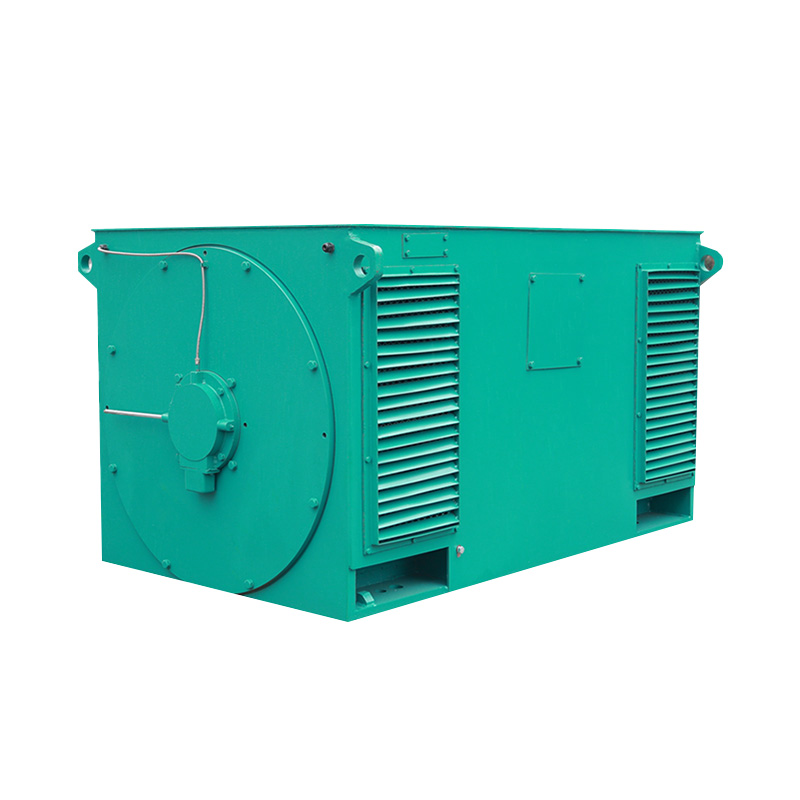

Y Series High-Voltage Three Phase Induction Motor (H:355-1000mm)
Home / Products / High Voltage Motor / Squirrel Cage Motor / Y Series High-Voltage Three Phase Induction Motor (H:355-1000mm)

Y Series High-Voltage Three Phase Induction Motor (H:355-1000mm)

Y series middle size High-voltage(center height H355-630mm)three phase squirrel cage induction motors are suitable for driving universal machines, such as compressors, water pumps cracking machines, cutting machines, transporting machines, and other equipment.
Y series motors are new products developed by our company, which have good properties such as high efficiency, and low vibration. They adopt class F insulation and box-type construction, which make the motors have reliable performance and good appearance.

Contact Us
Parameter
Type Y series high-voltage three phase induction motor (H:355-1000mm)
Feature Reasonable Structure,advanced technology,low noise,small vibration,easy installation
Poles 2-12poles
Voltage 3KV-13.8KV
Output Power 185KW~2000KW
Rated Frequency 50 HZ
Protection Class IP23
Insulation Class F/B,H/B
Duty S1
Altitude Less Than 1000m
Ambient Tempreture -15℃~+40
Installation IMB3/IMV1
Cooling Method TEFC,IC01
Application Drive fan machine,compressors,pumps,crushers
