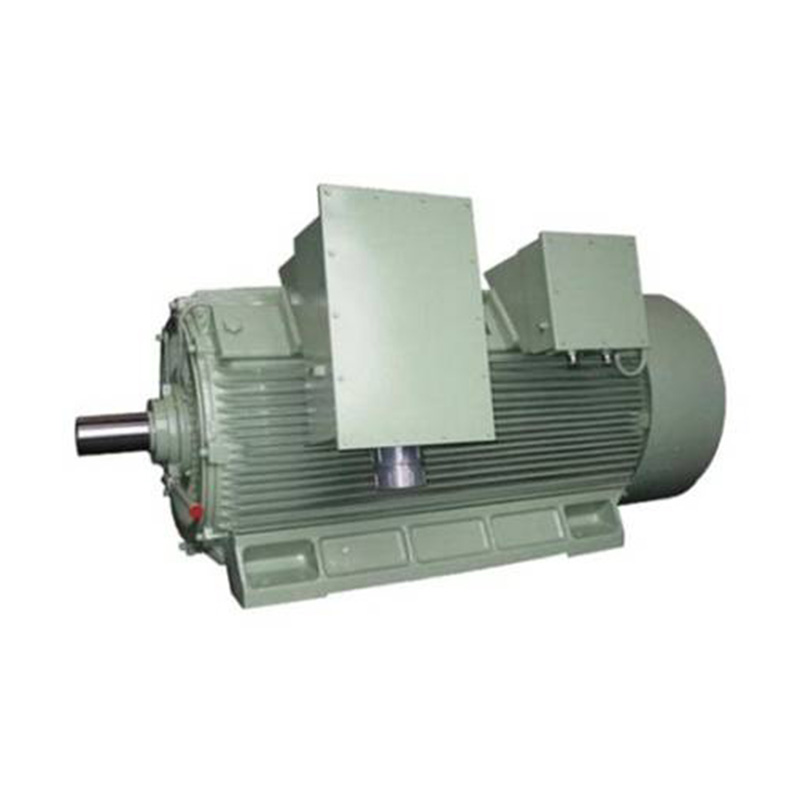

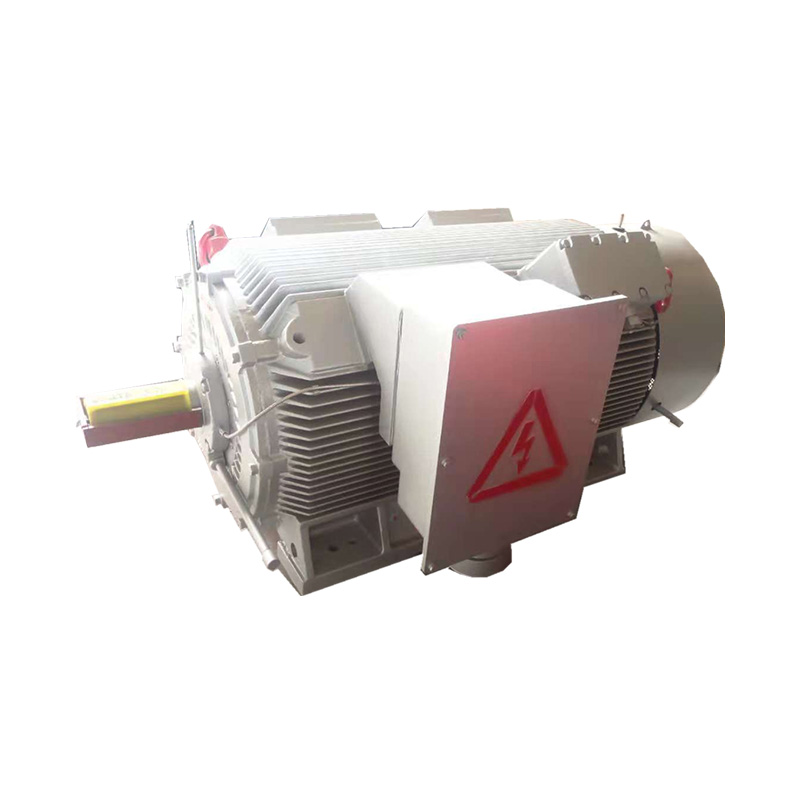

Y2 Series High-Voltage Three Phase Induction Motor (H:355-630mm)

Y2 series high voltage motors adopt the frame with cooling ribs which have high mechanical intensity and good rigidity. The motors have a high efficiency. This series of motors adopts a less pastern insulation system, insulation class F, VPI technics, main insulation, and Conductor inter-turn insulation that can resist the higher electric impulse. Cast Aluminum rotors ensure the motors operate reliably. Totally-enclosed design with IP54/IP55 degree of protection. An external fan is an on-way fan that has good features such as low noise, high efficiency, high air pressure, and No reversion.

Contact Us
Parameter
Type Y2 series high-voltage three phase induction motor (H:355-630mm)
Feature Reasonable Structure,advanced technology,low noise,small vibration,easy installation
Poles 2-12poles
Voltage 3KV-13.8KV
Output Power 160KW~2000KW
Rated Frequency 50 HZ
Protection Class IP44/IP54/IP55
Insulation Class F/B,H/B
Duty S1
Altitude Less Than 1000m
Ambient Tempreture -15℃~+40
Installation IMB3/IMV1
Cooling Method IC411 IC416
Application Drive fan machine,compressors,pumps,crushers
