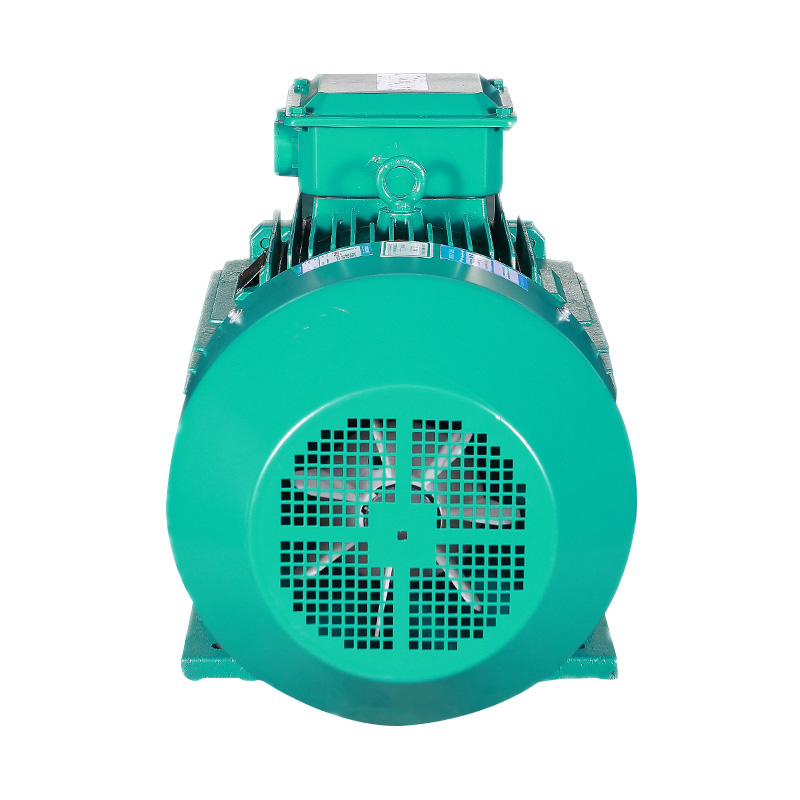

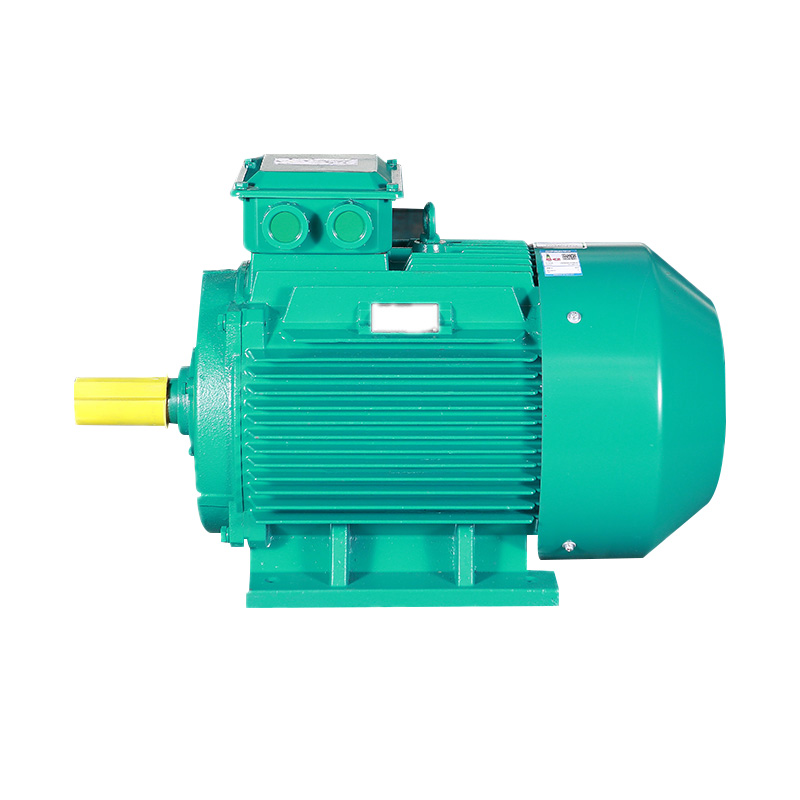

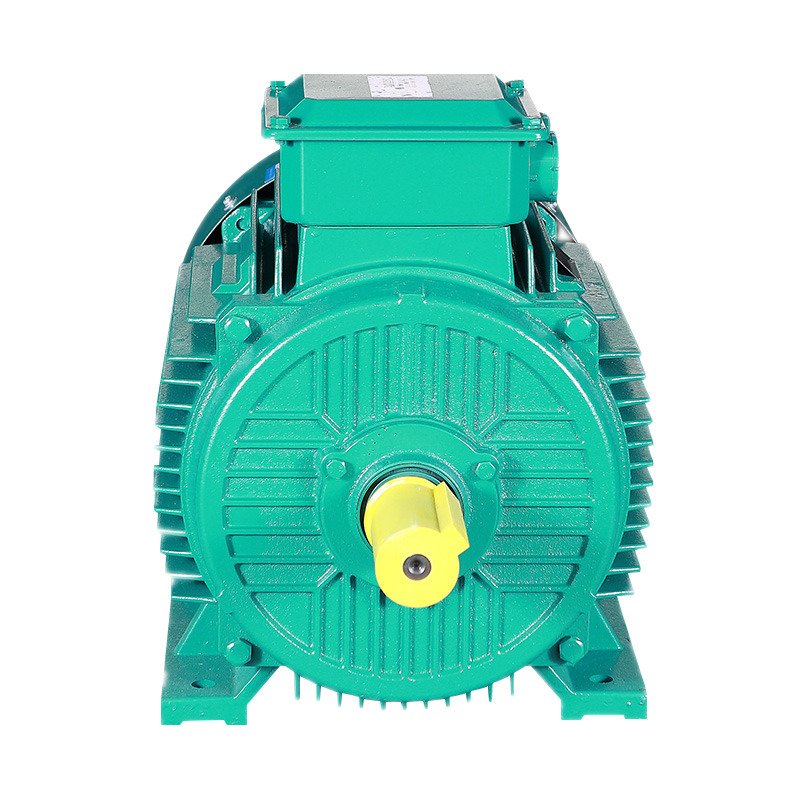

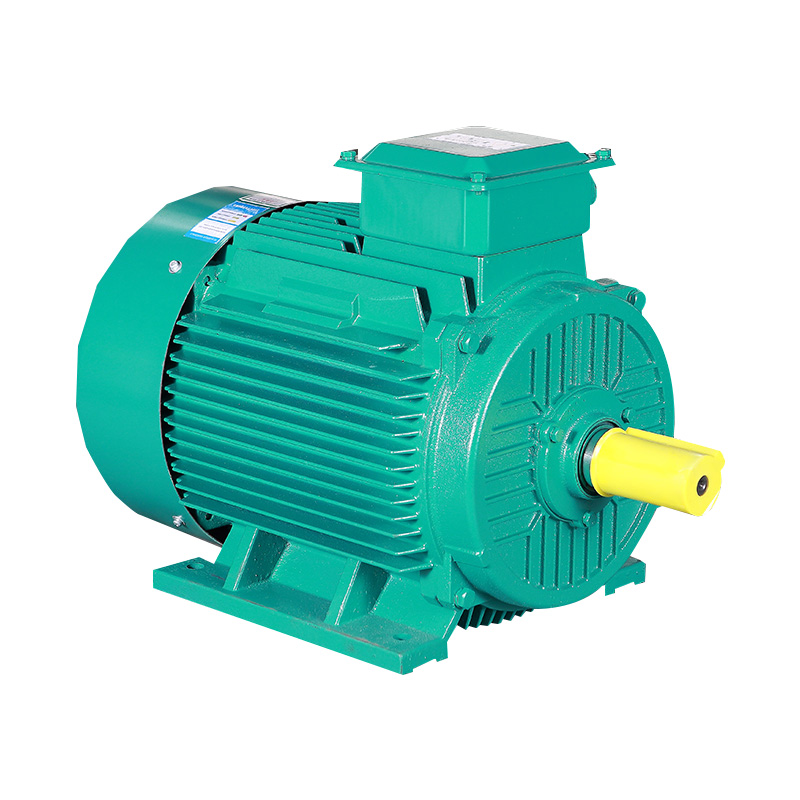

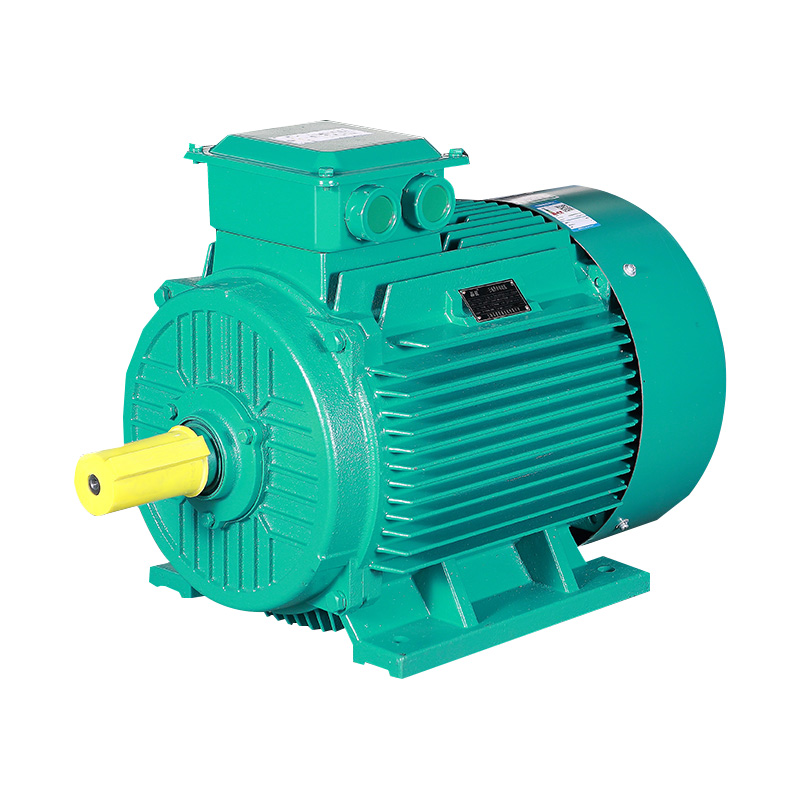

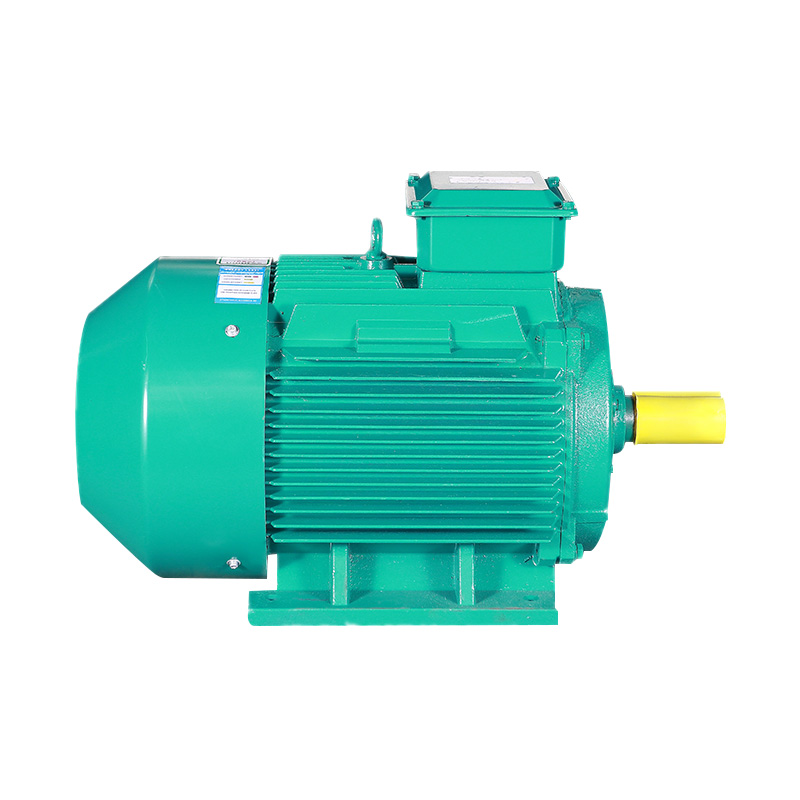

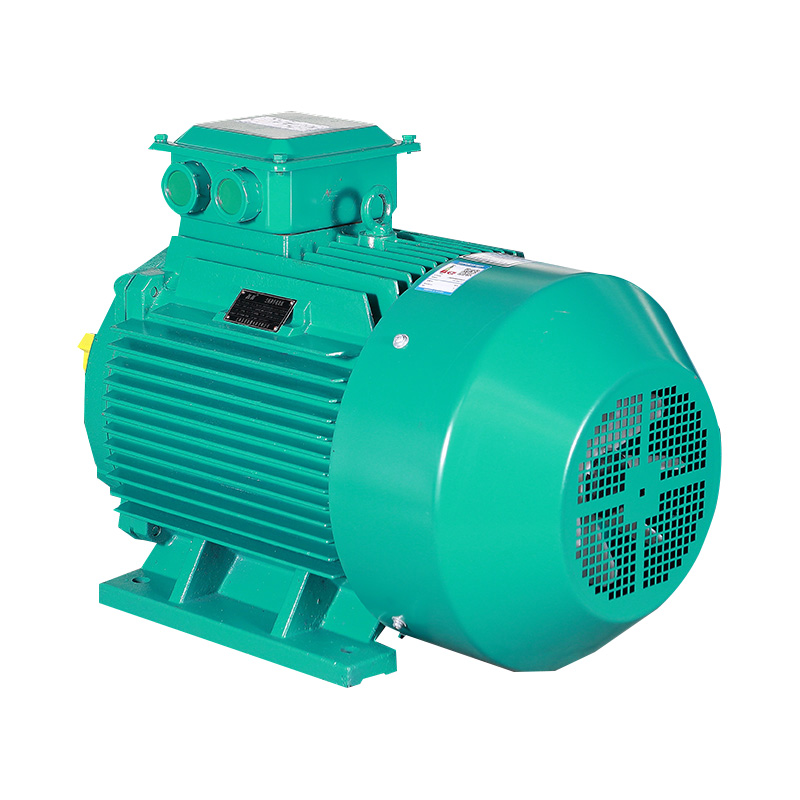

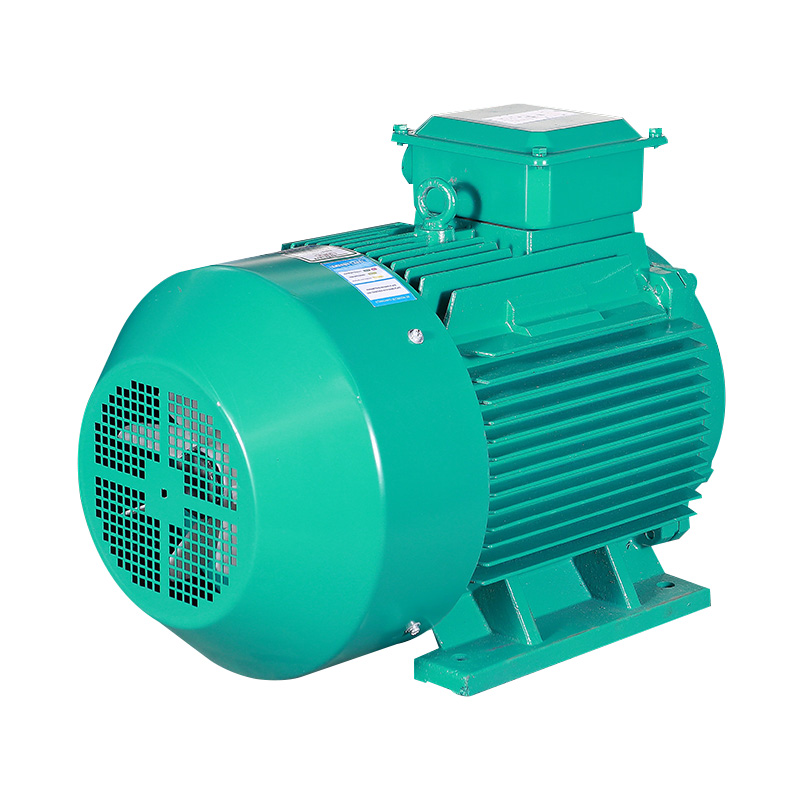

IE4 Series Three Phase High efficiency Induction Motor(H80-355MM)

IE4 Series Three Phase Induction Motor has a beautiful appearance, strong reliability, small volume, low vibration, low noise, and high efficiency, which is much more energy-saving compared with IE3 motors. The dimensions of parts of the motor meet the national standard GB1800-1804 and the corresponding standard of the national standardization organization ISO. The housing protection level of the electric motor meets GB4942.1 and IEC60034-5"Protection Grade classification of the overall structure of the rotating motor". The housing of motors has cooling fins, good cooling and mechanical strength, and strong rigidity. VPI overall immersion process for winding, insulation level is F at least, and withstanding voltage test for each winding. Cast-aluminium rotors ensure the reliability of motors. IP54/IP55 or other protection levels are for totally-enclosed housing. Unidirectional cooling fans as outer fans of high-speed motors ensure low noise, high wind pressure, and so on, reverse is not allowed.

Contact Us
Parameter
Type IE4 Series Three Phase High efficiency Induction Motor(H80-355MM)
Feature IE4 efficiency class
Poles 2-12poles
Voltage 220V-1140V
Output Power 0.75KW-355KW
Rated Frequency 50HZ/60HZ
Protection Class IP54/IP55
Insulation Class F/B H/B
Duty S1
Altitude Less Than 1000m
Ambient Temperature -15℃~+40℃
Installation IMB3 IMB35 IMB5
Cooling Method IC411
Customized Can be customized
