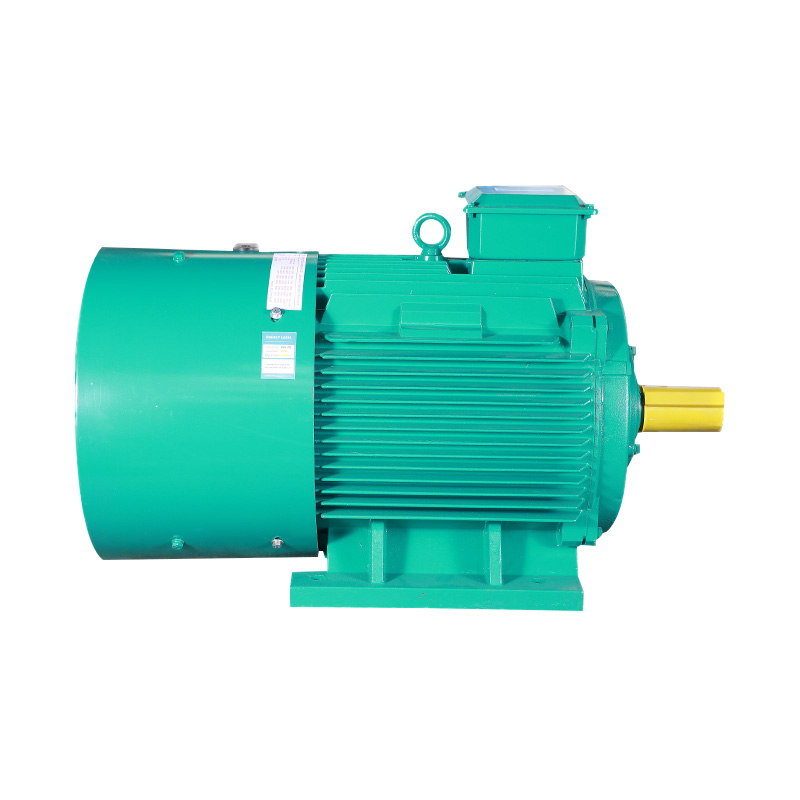

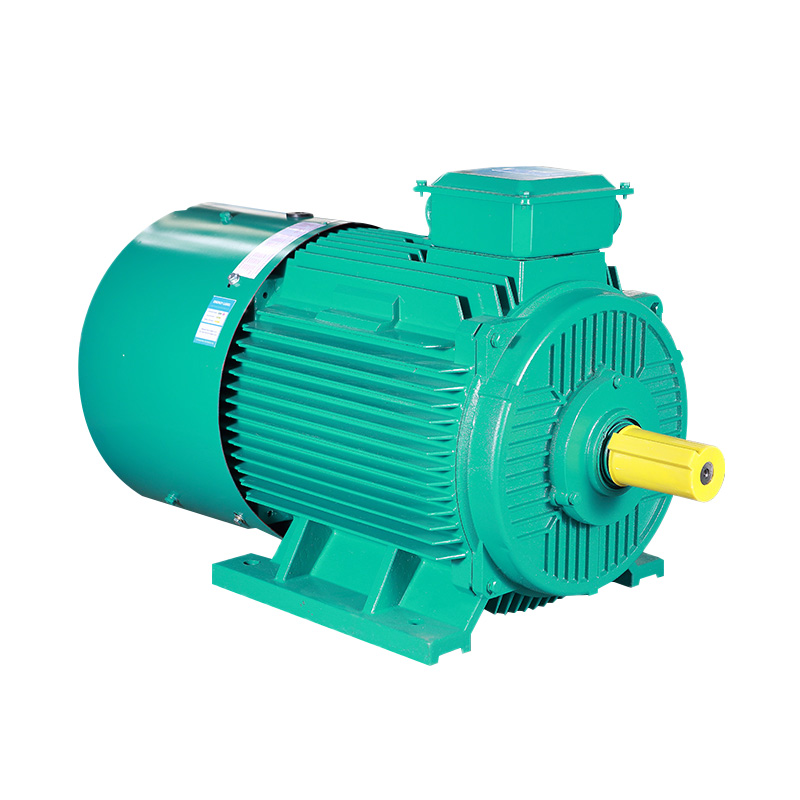

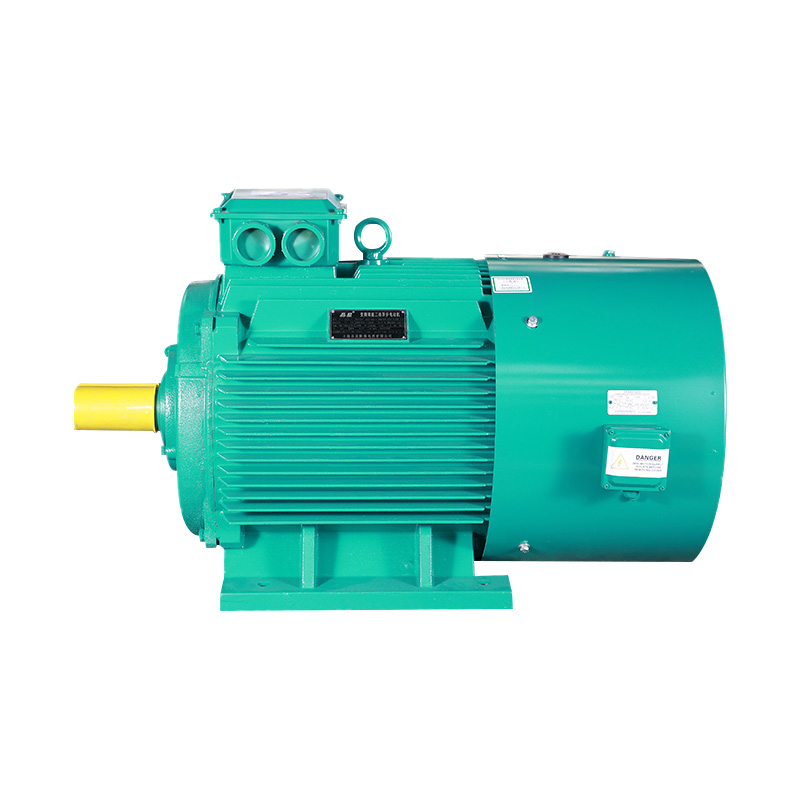

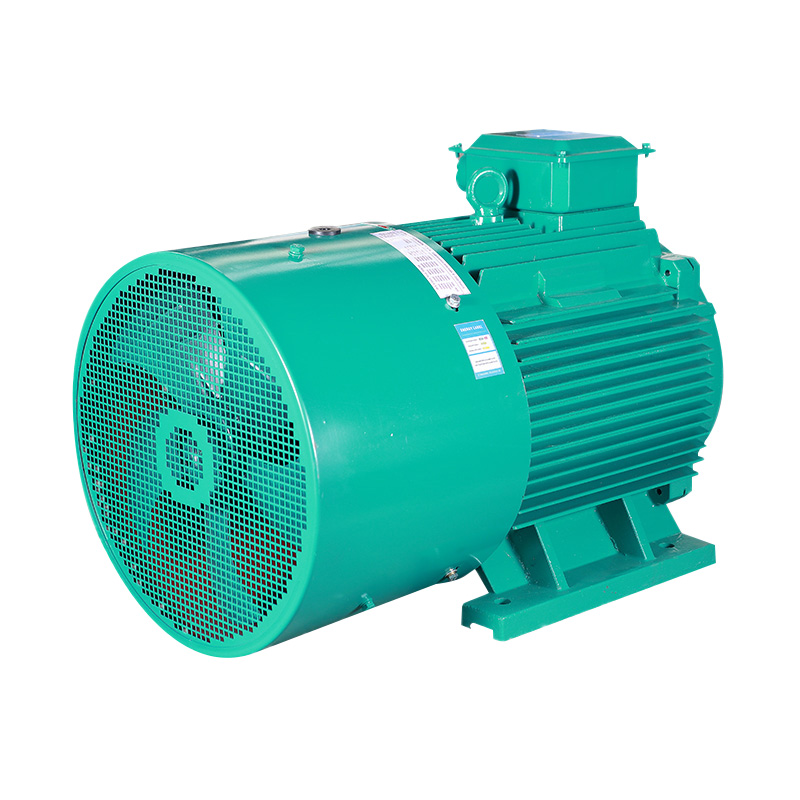

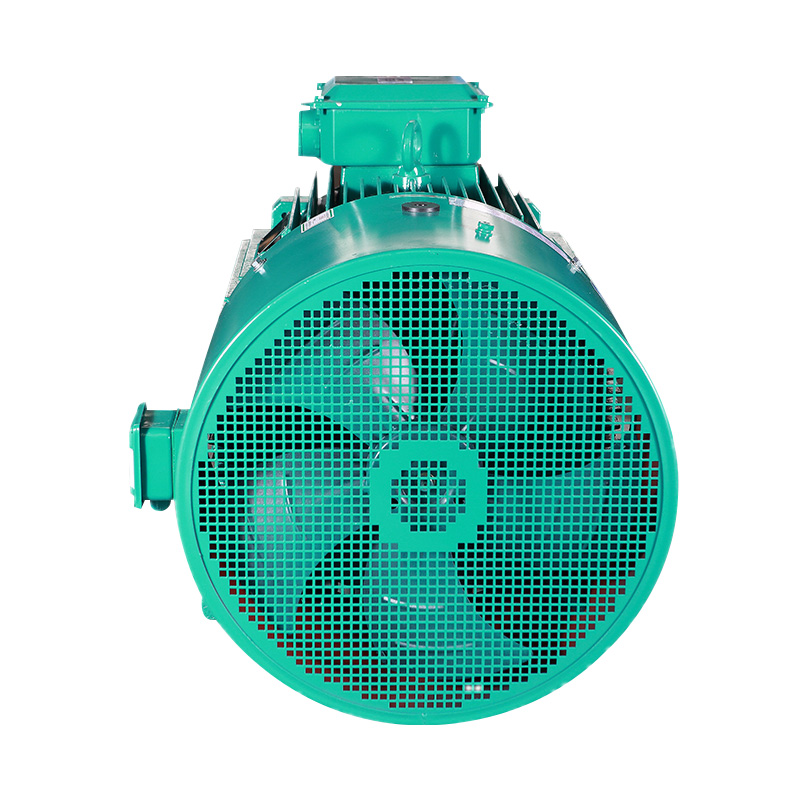

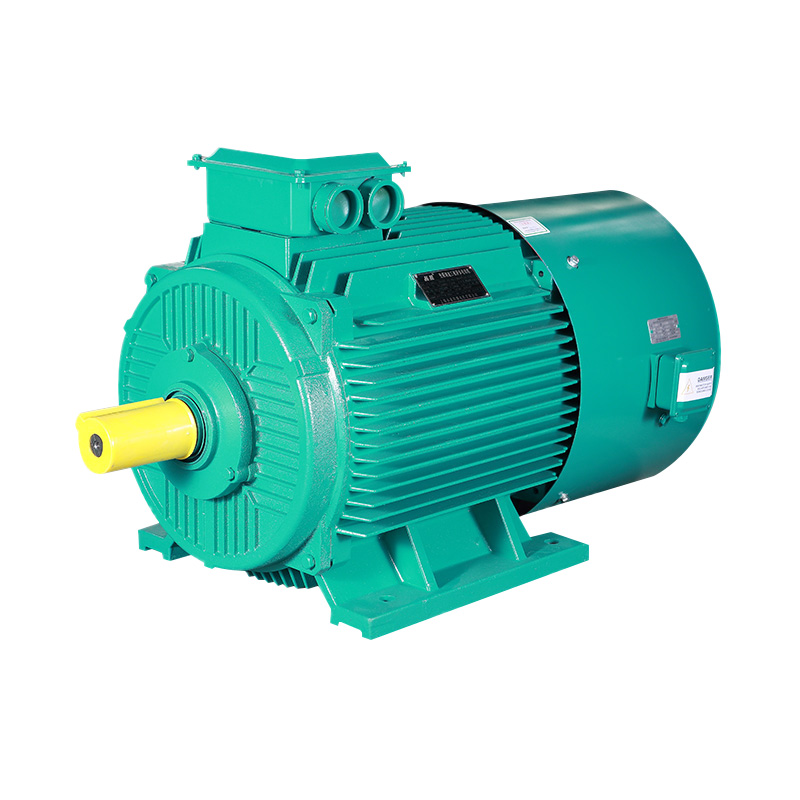

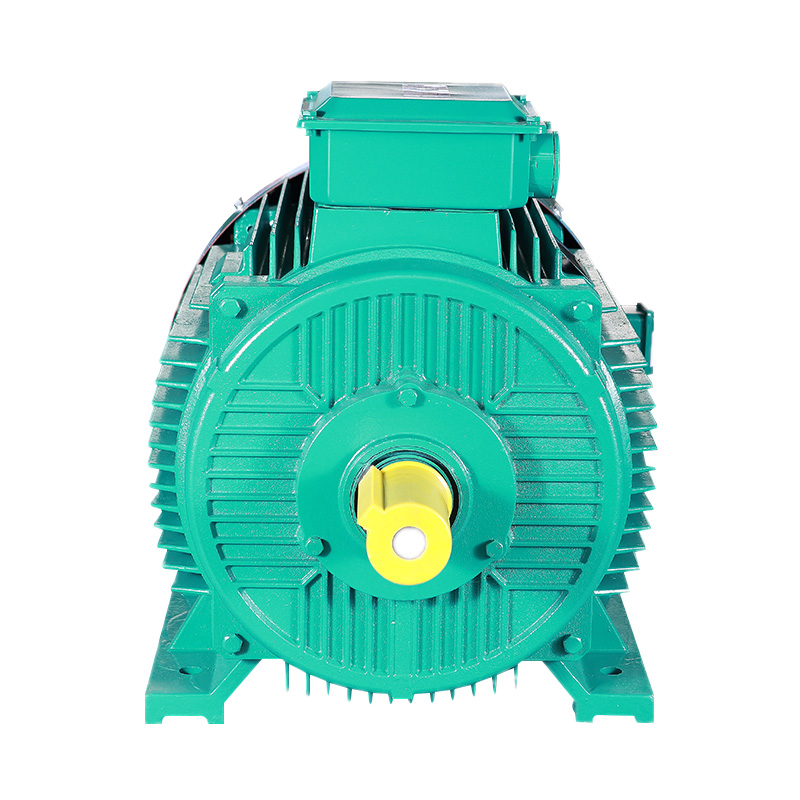

YPT Series Three Phase Induction Motor(H80-355MM)

YPT series motors are equipped with two kinds of ventilating structures: independent ventilation (cooling method IC416) and fan-ventilation cooling (cooling method IC411), the frequency ranges from 5-100HZ and the range can be enlarged for motors for 4Poles and more.

Contact Us
Parameter
Type YPT Series Three Phase Induction Motor(H80-355MM)
Feature TH/THW/TA/TAW/T/TW/F1/F2/WF1/WF2/WTH
Poles 2-12poles
Voltage 3220V-1140V
Output Power 0.75KW-355KW
Rated Frequency 50HZ/60HZ
Protection Class IP55/IP56/IP65
Insulation Class F/B H/B
Duty S1
Altitude 0-1000mm
Ambient Temperature -15℃~+40℃
Installation IMB3/IMB35/IMB5
Cooling Method IC416
Ex mark NA
Application Metallurgy, Water Treatment, Chemical Industry, Power Plant, Mining, Marine, Port, Cement.
