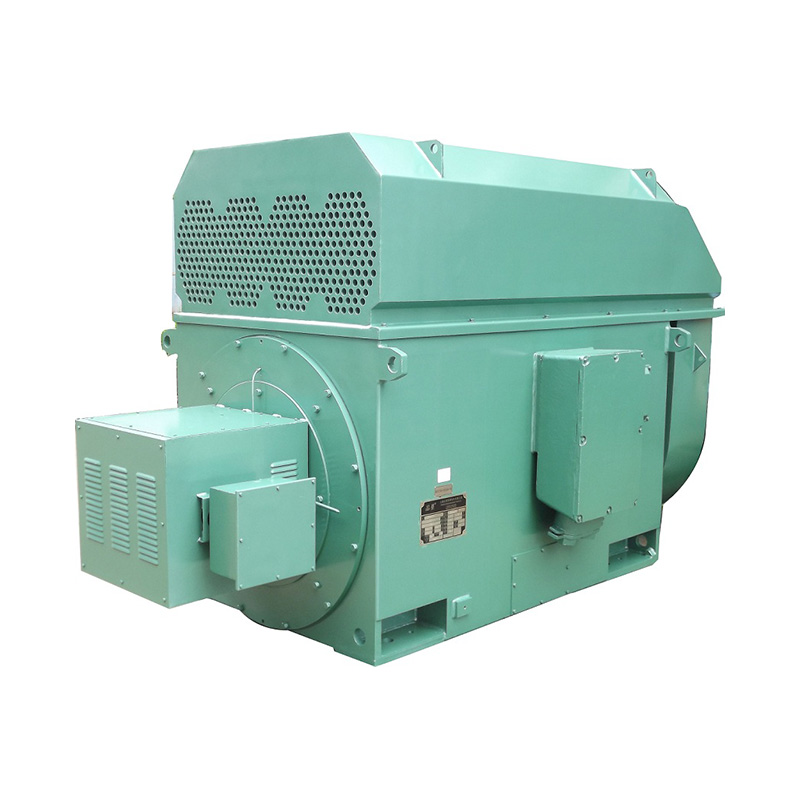

YRKK Series High-Voltage Three Phase Slip Ring Motor (H:355-1000mm)
Home / Products / High Voltage Motor / Wound Rotor Type Motor / YRKK Series High-Voltage Three Phase Slip Ring Motor (H:355-1000mm)

YRKK Series High-Voltage Three Phase Slip Ring Motor (H:355-1000mm)

The motor adopts a box structure, and the frame is made of steel, which is light and strong. YKK series motor uses a top top-mounted closed air-air cooler, which is convenient to install, maintain, and repair. The stator adopts a press-fit structure, and the stator winding adopts F-grade insulation material by inter-turn pulse voltage test and withstanding voltage test, and treated with advanced vacuum pressing impregnation(VPI), so the motor has good and reliable insulation performance, good mechanical strength and strong moisture resistance. The squirrel cage rotor is manufactured by advanced cast aluminum technology, the bearing has two forms a ball bearing and a cylindrical roller bearing, depending on the motor power, frame, and speed. The protection class is IP54, which also can be IP55 or others under the customer's requirement.

Contact Us
Parameter
Type YRKK series high-voltage three phase slip ring motor (H:355-1000mm)
Feature Reasonable Structure,advanced technology,low noise,small vibration,easy installation
Poles 2-12poles
Voltage 3KV-13.8KV
Output Power 185KW~4000KW
Rated Frequency 50 HZ
Protection Class IP44/IP54/IP55
Insulation Class F/B,H/B
Duty S1
Altitude Less Than 1000m
Ambient Tempreture -15℃~+40
Installation IMB3/IMV1
Cooling Method IC611,IC616,IC666
Application Drive fan machine,compressors,pumps,crushers
