Which Parameters Determine Low-Voltage Variable Frequency Motor Performance?

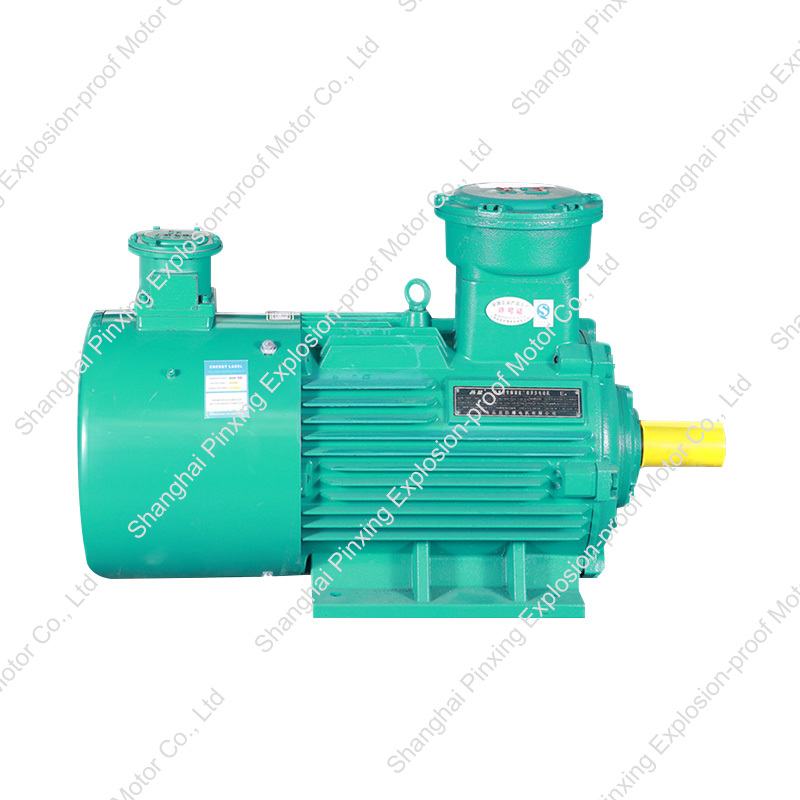

Engineers face critical decisions when selecting drive systems for industrial applications. The wrong parameter configuration leads to energy waste, premature failure, or operational instability. This guide examines three essential technical specifications that procurement teams must evaluate when specifying low-voltage variable frequency motor systems for demanding industrial environments.

Current Ratings and Thermal Management

Current capacity represents the fundamental limit of motor endurance. Low-voltage VFD motor current specifications determine copper losses, heat generation, and insulation stress under variable frequency operation. Engineers must distinguish between rated current, maximum current, and overload current capabilities.

Variable frequency drives introduce harmonic distortion that increases effective current loading. The total harmonic distortion (THD) typically ranges 3-8% in modern pulse-width modulation drives. This distortion creates additional heating beyond sinusoidal operation conditions. Motor manufacturers account for this through derating factors or enhanced insulation systems.

• Rated current defines continuous operation at base speed and rated load
• The service factor current permits a temporary overload without thermal damage
• Breakdown current indicates the maximum before magnetic saturation
• Thermal class ratings (F or H) determine allowable temperature rise

Harmonic Heating Considerations

Variable frequency operation generates additional losses in the stator winding and rotor cage. These losses increase with carrier frequency and switching speed. Engineers calculate equivalent heating using the current root-mean-square value, including harmonic components.

High-efficiency motor designs utilize larger conductor cross-sections and improved slot fill factors. These construction features reduce resistance losses and improve heat dissipation capability. Procurement specifications should require inverter-duty ratings for applications operating below 60Hz base frequency.

Power Sizing and Duty Cycle Analysis

Power rating selection extends beyond simple load matching. Variable frequency drive motor power ratings must accommodate the mechanical load profile, acceleration requirements, and regenerative braking demands. Oversizing increases capital cost and reduces operating efficiency. Undersizing risks thermal overload and shortened service life.

The duty cycle classification (IEC 60034-1) defines thermal equilibrium conditions. Continuous duty (S1) assumes a onstant load until temperature stabilization. Periodic duty cycles (S2-S10) permit temporary overloads based on thermal time constants.

Variable Torque versus Constant Torque Loads

Centrifugal pumps and fans follow variable torque characteristics where power demand varies with speed cubed. These applications permit energy-efficient low-voltage motor sizing at the actual operating point rather than peak demand. Constant torque loads, including conveyors and positive displacement pumps,s require full torque capability across the speed range.

The speed-torque curve intersection determines stable operating points. Engineers verify that motor breakdown torque exceeds maximum load torque by 15-20% margin. This margin accommodates voltage fluctuations, temperature variations, and load transients without stall conditions.

Load Characteristics and Dynamic Response

Mechanical load properties fundamentally influence drive system specification. Industrial VFD motor load matching requires analysis of inertia, friction characteristics, and torque-speed requirements. High-inertia loads demand extended acceleration ramps to prevent overcurrent trips or mechanical stress.

The load inertia ratio (load inertia divided by motor inertia) affects system stability and response time. Ratios exceeding 10:1 require careful tuning of proportional-integral-derivative parameters. Very high inertia ratios may necessitate encoder feedback for stable vector control operation.

• Load torque type: constant, linear, or quadratic with speed
• Starting torque requirements for high-friction mechanisms
• Regenerative energy return during deceleration

Mechanical Compliance and Resonance

Drive systems exhibit mechanical resonance at specific natural frequencies. Variable frequency operation traverses these frequencies during acceleration and deceleration. Resonance amplification causes vibration, noise, and potential mechanical failure.

Modern variable frequency drives incorporate skip-frequency functions that avoid continuous operation at resonant speeds. Damping techniques, including rubber couplings, flywheels, or tuned mass dampers, mitigate resonance effects. Procurement specifications should document critical speeds to avoid and the required damping performance.

Integration and Specification Development

Effective low-voltage variable frequency motor procurement requires integrated system thinking. Current capacity, power rating, and load characteristics interact in complex ways. A motor with an adequate current rating may prove undersized for high-inertia acceleration demands. Appropriate power rating fails if the thermal class cannot withstand harmonic heating.

Technical specifications should require manufacturer documentation of inverter-duty ratings, thermal derating curves, and torque-speed characteristics. Third-party certification to IEC 60034-17 (inverter-fed motor applications) provides independent verification of suitability.

• Specify the actual operating speed range and duration at each speed
• Document ambient temperature and altitude conditions
• Define the required service factor and overload capability
• Require efficiency maps across the operating envelope

FAQ

What voltage range defines low-voltage variable frequency motors?

Industry standards classify low-voltage motors as those rated below 1000V. Common ratings include 230V, 460V, and 575V for North American applications. European systems typically utilize 400V or 690V. Low-voltage VFD motor selection must match available facility distribution voltage and drive input requirements.

How does carrier frequency affect motor performance?

Carrier frequency determines pulse-width modulation switching rate. Higher frequencies (8-16kHz) reduce audible noise and motor current ripple. However, increased switching losses reduce drive efficiency and generate additional heat. Motor insulation must withstand higher voltage rise rates (dv/dt) associated with high carrier frequencies.

Can standard motors operate with variable frequency drives?

Standard general-purpose motors function with variable frequency drives, but with limitations. Inverter-duty motors feature enhanced insulation (minimum 1600V spike withstand), separate cooling fans for low-speed operation, and balanced phase impedance. Variable frequency drive motor compatibility requires evaluation of these factors for critical applications.

References

• IEC 60034-1:2017. Rotating Electrical Machines - Rating and Performance. International Electrotechnical Commission.
• IEC 60034-17:2006. Cage Induction Motors When Fed from Converters - Application Guide. International Electrotechnical Commission.
• NEMA MG1-2021. Motors and Generators. National Electrical Manufacturers Association.
• Jones, D. and Smith, R. Variable Frequency Drive Motor Application and Specification. IEEE Industry Applications Magazine, Vol. 28, No. 3, 2022.
• De Almeida, A. et al. Energy-Efficient Motor Systems. European Commission Joint Research Centre Technical Report, 2023.
